Class ethpm:LbRtdIf (CONCRETE)

Class ID:3644
Class Label: Loopback Routed Interface
Encrypted: false - Exportable: false - Persistent: false - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [access-connectivity-l3, admin, fabric-connectivity-l3, tenant-connectivity-l3, tenant-ext-connectivity-l3]
Creatable/Deletable: yes (see Container Mos for details)
Semantic Scope: EPG
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: false, HasStats: false, HasFaults: false, HasHealth: false, HasEventRules: false ]

RN FORMAT: lbrtdif

    [1] PREFIX=lbrtdif


DN FORMAT:

[0] topology/pod-{id}/node-{id}/sys/ctxsubstitute-{[encap]}/lb-{[id]}/lbrtdif

[1] sys/ctxsubstitute-{[encap]}/lb-{[id]}/lbrtdif

[2] topology/pod-{id}/node-{id}/sys/inst-{name}/lb-{[id]}/lbrtdif

[3] sys/inst-{name}/lb-{[id]}/lbrtdif

[4] topology/pod-{id}/node-{id}/sys/ctx-{[encap]}/lb-{[id]}/lbrtdif

[5] sys/ctx-{[encap]}/lb-{[id]}/lbrtdif

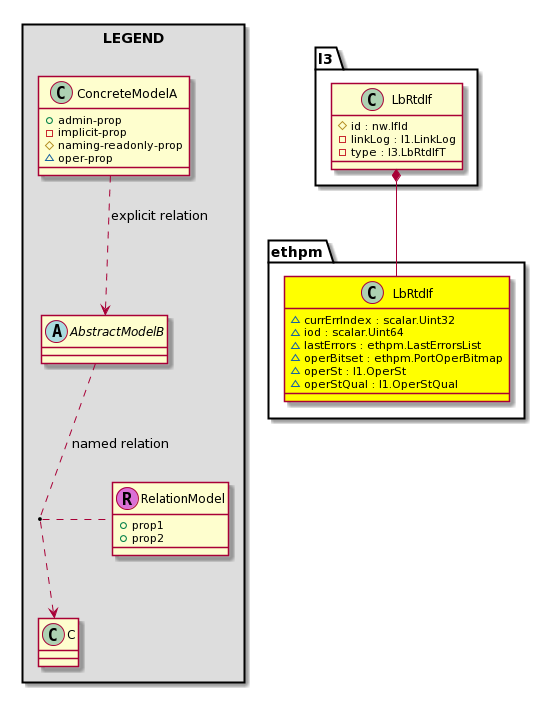

Diagram

Container Mos: l3:LbRtdIf (deletable:yes),

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l3:CtxSubstitute  Tenant context object substitute. Its needed for internal PE purposes but it doesnt instantiate any VRF in the node.            ├ l3:LbRtdIf The routed loopback interface.              ├ ethpm:LbRtdIf Loopback interface information holder top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l3:CtxSubstitute  Tenant context object substitute. Its needed for internal PE purposes but it doesnt instantiate any VRF in the node.      ├ l3:LbRtdIf The routed loopback interface.        ├ ethpm:LbRtdIf Loopback interface information holder top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l3:Inst The infra VRF is created for the iNXOS fabric infrastructure. All communications between fabric elements, such as spine, leaf and vleaf, take place in this VRF.            ├ l3:LbRtdIf The routed loopback interface.              ├ ethpm:LbRtdIf Loopback interface information holder top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l3:Inst The infra VRF is created for the iNXOS fabric infrastructure. All communications between fabric elements, such as spine, leaf and vleaf, take place in this VRF.      ├ l3:LbRtdIf The routed loopback interface.        ├ ethpm:LbRtdIf Loopback interface information holder top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l3:Ctx The tenant context information is equivalent to a virtual routing and forwarding (VRF) instance created for the tenant's L3 network. Similar to a VRF in traditional Cisco routers, the tenant context isolates the IP addresses of the tenant, allowing different tenants to have overlapping IP addresses.            ├ l3:LbRtdIf The routed loopback interface.              ├ ethpm:LbRtdIf Loopback interface information holder top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l3:Ctx The tenant context information is equivalent to a virtual routing and forwarding (VRF) instance created for the tenant's L3 network. Similar to a VRF in traditional Cisco routers, the tenant context isolates the IP addresses of the tenant, allowing different tenants to have overlapping IP addresses.      ├ l3:LbRtdIf The routed loopback interface.        ├ ethpm:LbRtdIf Loopback interface information holder

Contained Hierarchy

ethpm:LbRtdIf Loopback interface information holder

Inheritance

ethpm:LbRtdIf Loopback interface information holder

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

currErrIndex

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Current error index

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

iod

Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Iod

lastErrors

Type: ethpm:LastErrorsList
Primitive Type: base:Uint32Array4

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Last seen errors

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

operBitset

Type: ethpm:PortOperBitmap
Primitive Type: base:BitArray64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational state flags

operSt

Type: l1:OperSt
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational state

operStQual

Type: l1:OperStQual
Primitive Type: scalar:Enum32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational state failure reason.

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.
