Class fault:Summary (CONCRETE)

Class ID:6667
Class Label: Fault Count summary
Encrypted: false - Exportable: false - Persistent: true - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [admin]
Creatable/Deletable: yes (see Container Mos for details)
Semantic Scope: None
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: false, HasStats: false, HasFaults: false, HasHealth: false, HasEventRules: false ]

RN FORMAT: fltcode-{code}

    [1] PREFIX=fltcode- PROPERTY = code




DN FORMAT:

[0] fltcode-{code}

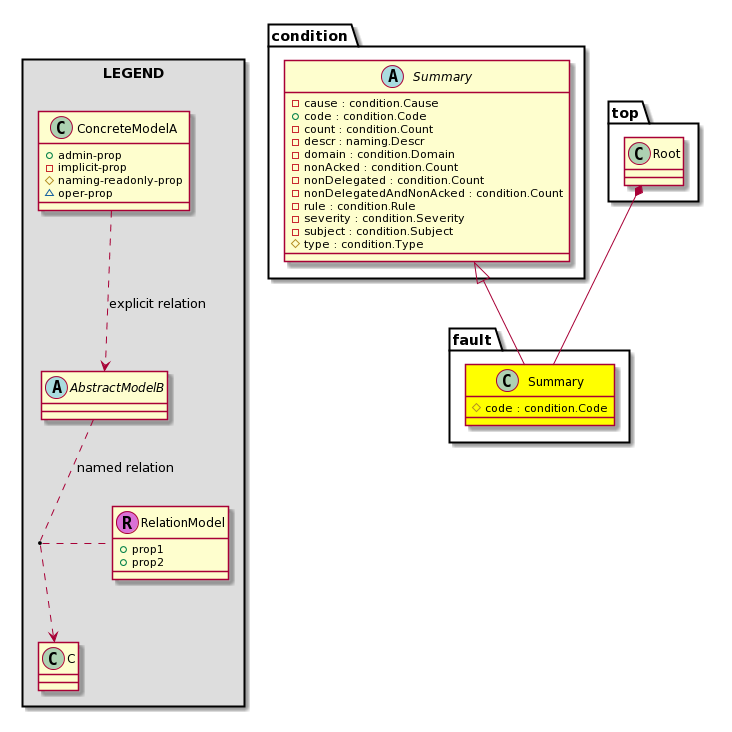

Diagram

Super Mo: condition:Summary, Container Mos: top:Root (deletable:yes),

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fault:Summary

Contained Hierarchy

fault:Summary

Inheritance

condition:Summary   ├ fault:Summary

cause

Type: condition:Cause
Primitive Type: scalar:Enum32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The cause that led to the creation of this object.

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

code

Type: condition:Code
Primitive Type: scalar:Uint32

Overrides:condition:Summary:code

Units: null
Encrypted: false
Naming Property -- [NAMING RULES]
Access: naming
Category: TopLevelRegular

The code that helps to categorize and identify different types of condition policy objects.
