Class l3:RsProtLbIf (CONCRETE)

Class ID:3788
Class Label: Protection Group
Encrypted: false - Exportable: false - Persistent: true - Configurable: false - Subject to Quota: Disabled
Relationship Type: explicit
Relationship Cardinality: n-to-1
Relationship From: l3:LbRtdIf
Relationship From Rel: l3:RsProtLbIf
Relationship To: fabric:AProtGEp
Relationship To Rel: fabric:RtProtLbIf
Enforceable: false
Resolvable: true
Write Access: [NON CONFIGURABLE]
Read Access: [access-connectivity-l3, admin, fabric-connectivity-l3, tenant-connectivity-l3, tenant-ext-connectivity-l3]
Creatable/Deletable: yes (see Container Mos for details)
Semantic Scope: EPG
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: false, HasStats: false, HasFaults: false, HasHealth: false, HasEventRules: false ]

A loopback created for protection groups.

Naming Rules
RN FORMAT: rsprotLbIf

    [1] PREFIX=rsprotLbIf


DN FORMAT:

[0] topology/pod-{id}/node-{id}/sys/ctxsubstitute-{[encap]}/lb-{[id]}/rsprotLbIf

[1] sys/ctxsubstitute-{[encap]}/lb-{[id]}/rsprotLbIf

[2] topology/pod-{id}/node-{id}/sys/inst-{name}/lb-{[id]}/rsprotLbIf

[3] sys/inst-{name}/lb-{[id]}/rsprotLbIf

[4] topology/pod-{id}/node-{id}/sys/ctx-{[encap]}/lb-{[id]}/rsprotLbIf

[5] sys/ctx-{[encap]}/lb-{[id]}/rsprotLbIf

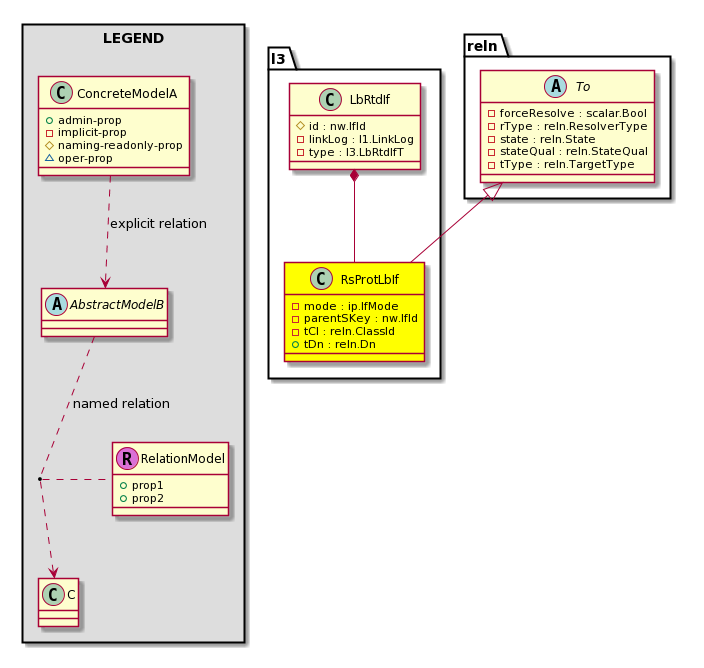

Diagram

Super Mo: reln:To,
Container Mos: l3:LbRtdIf (deletable:yes),


Containers Hierarchies
[V] top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.
 ├
 		[V] fabric:Topology The root for IFC topology.

 		 ├
 		[V] fabric:Pod A pod.


 		 ├
 		[V] fabric:Node The root node for the APIC.



 		 ├
 		[V] top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...




 		 ├
 		[V] l3:CtxSubstitute  Tenant context object substitute. Its needed for internal PE purposes but it doesnt instantiate any VRF in the node.





 		 ├
 		[V] l3:LbRtdIf The routed loopback interface.






 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.
[V] top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.
 ├
 		[V] top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...

 		 ├
 		[V] l3:CtxSubstitute  Tenant context object substitute. Its needed for internal PE purposes but it doesnt instantiate any VRF in the node.


 		 ├
 		[V] l3:LbRtdIf The routed loopback interface.



 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.
[V] top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.
 ├
 		[V] fabric:Topology The root for IFC topology.

 		 ├
 		[V] fabric:Pod A pod.


 		 ├
 		[V] fabric:Node The root node for the APIC.



 		 ├
 		[V] top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...




 		 ├
 		[V] l3:Inst The infra VRF is created for the iNXOS fabric infrastructure. All communications between fabric elements, such as spine, leaf and vleaf, take place in this VRF.





 		 ├
 		[V] l3:LbRtdIf The routed loopback interface.






 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.
[V] top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.
 ├
 		[V] top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...

 		 ├
 		[V] l3:Inst The infra VRF is created for the iNXOS fabric infrastructure. All communications between fabric elements, such as spine, leaf and vleaf, take place in this VRF.


 		 ├
 		[V] l3:LbRtdIf The routed loopback interface.



 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.
[V] top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.
 ├
 		[V] fabric:Topology The root for IFC topology.

 		 ├
 		[V] fabric:Pod A pod.


 		 ├
 		[V] fabric:Node The root node for the APIC.



 		 ├
 		[V] top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...




 		 ├
 		[V] l3:Ctx The tenant context information is equivalent to a virtual routing and forwarding (VRF) instance created for the tenant's L3 network. Similar to a VRF in traditional Cisco routers, the tenant context isolates the IP addresses of the tenant, allowing different tenants to have overlapping IP addresses.





 		 ├
 		[V] l3:LbRtdIf The routed loopback interface.






 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.
[V] top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.
 ├
 		[V] top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...

 		 ├
 		[V] l3:Ctx The tenant context information is equivalent to a virtual routing and forwarding (VRF) instance created for the tenant's L3 network. Similar to a VRF in traditional Cisco routers, the tenant context isolates the IP addresses of the tenant, allowing different tenants to have overlapping IP addresses.


 		 ├
 		[V] l3:LbRtdIf The routed loopback interface.



 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.


Contained Hierarchy
[V] l3:RsProtLbIf A loopback created for protection groups.


Inheritance
[V] reln:Inst This is generated and used only by internal processes.
 ├
 		[V] reln:To This is generated and used only by internal processes.

 		 ├
 		[V] l3:RsProtLbIf A loopback created for protection groups.


Events


Faults


Fsms


Properties Summary
Defined in: l3:RsProtLbIf
ip:IfMode
          scalar:Bitmask16 		mode  (l3:RsProtLbIf:mode)
           null
nw:IfId
          base:IfIndex 		parentSKey  (l3:RsProtLbIf:parentSKey)
           null
reln:ClassId
          scalar:Enum16 		tCl  (l3:RsProtLbIf:tCl)
           Overrides:reln:Inst:tCl
           null
reln:Dn
          reference:BinRef 		tDn  (l3:RsProtLbIf:tDn)
           Overrides:reln:Inst:tDn
           null
Defined in: reln:To
scalar:Bool forceResolve  (reln:To:forceResolve)
           Whether the relation should force pull the target.
reln:ResolverType
          scalar:Enum8 		rType  (reln:To:rType)
           Represents the type of resolver.
reln:State
          scalar:Enum8 		state  (reln:To:state)
           Represents the state of the relationship.
reln:StateQual
          scalar:Enum8 		stateQual  (reln:To:stateQual)
           Represents the state qualifier of the relationship.
reln:TargetType
          scalar:Enum8 		tType  (reln:To:tType)
           The type of target.
Defined in: mo:TopProps
mo:ModificationChildAction
          scalar:Bitmask32 		childAction  (mo:TopProps:childAction)
           Delete or ignore. For internal use only.
reference:BinRef dn  (mo:TopProps:dn)
           A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.
reference:BinRN rn  (mo:TopProps:rn)
           Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.
mo:ModificationStatus
          scalar:Bitmask32 		status  (mo:TopProps:status)
           The upgrade status. This property is for internal use only.
Defined in: mo:Resolvable
mo:Owner
          scalar:Enum8 		lcOwn  (mo:Resolvable:lcOwn)
           A value that indicates how this object was created. For internal use only.
Defined in: mo:Modifiable
mo:TStamp
          scalar:Date 		modTs  (mo:Modifiable:modTs)
           The time when this object was last modified.
Properties Detail

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction
    Comments:
Delete or ignore. For internal use only.
Constants
deleteAll 16384u deleteAll NO COMMENTS
ignore 4096u ignore NO COMMENTS
deleteNonPresent 8192u deleteNonPresent NO COMMENTS
DEFAULT 0 --- This type is used to




dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn
    Comments:
A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.


forceResolve

Type: scalar:Bool

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
Whether the relation should force pull the target.
Constants
no false --- NO COMMENTS
yes true --- NO COMMENTS
DEFAULT yes(true) --- NO COMMENTS




lcOwn

Type: mo:Owner
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
A value that indicates how this object was created. For internal use only.
Constants
local 0 Local NO COMMENTS
policy 1 Policy NO COMMENTS
replica 2 Replica NO COMMENTS
resolveOnBehalf 3 ResolvedOnBehalf NO COMMENTS
implicit 4 Implicit NO COMMENTS
DEFAULT local(0) Local NO COMMENTS




modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
The time when this object was last modified.
Constants
never 0ull never NO COMMENTS
DEFAULT never(0ull) never NO COMMENTS




mode

Type: ip:IfMode
Primitive Type: scalar:Bitmask16

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
null
Constants
unspecified 0 Unspecified Unspecified
ptep 1 Physical TEP Interface Interface mode to represent the TEP: the address on this interface is used to establish the tunnels between the Leaf and other Leaves/Spine
ftep 2 Fabric TEP Interface Interface mode to represent the fabric TEP: the address on this interface is used as the source for south bound tunnels. This is one per overlay instance of the fabric
vpc 4 VPC VIP Interface Interface mode to represent the VPC VIP: the address on this interface is used when the Leaves forward traffic that ingresses VPC ports and is forwarded by the Leaf using the VXLAN encapsulation
anycast-v4 8 Anycast IPv4 Interface Interface mode to represent anycast address on spine proxy (v4/v6/mac): the interface is used for establishing tunnels to Spine proxy from Leaves
anycast-v6 16 Anycast IPv6 Interface NO COMMENTS
anycast-mac 32 Anycast MAC Interface NO COMMENTS
infra-vtep 64 VTEP Access Interface Infra interface in which the VTEP resides
pervasive 128 Pervasive Interface Interfaces present inside the fabric and they can also optionally be extended outside to the fabric
external 256 External Interface Interfaces to define external connectivity in a tenant. Applicable only on border leaf
proxy-v4 512 Proxy IPv4 Interface Interface mode to represent physical address for spine proxy (v4/v6/mac): this is used for spine chaining
proxy-v6 1024 Proxy IPv6 Interface NO COMMENTS
proxy-mac 2048 Proxy MAC Interface NO COMMENTS
etep 4096 Data Plane External TEP Interface Interface for receiving proxy traffic from other pods Applicable only on a spine with infra extension
cp-etep 8192 Control Plane External TEP Interface Interface for receiving external control plane updates like BGP EVPN in a multi-pod topology. Applicable only on a spine with infra extension
dci-ucast 16384 Dci Unicast External TEP Interface dci ucast loopback (address unique to each pod)
dci-mcast-hrep 32768 Dci Multicast TEP Interface dci mcast loopback (address unique per site)
DEFAULT unspecified(0) Unspecified Unspecified




parentSKey

Type: nw:IfId
Primitive Type: base:IfIndex

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
null


rType

Type: reln:ResolverType
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
Represents the type of resolver.
Constants
mo 1 mo NO COMMENTS
service 2 service NO COMMENTS
local 3 local NO COMMENTS
DEFAULT mo(1) mo NO COMMENTS




rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn
    Comments:
Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.


state

Type: reln:State
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
Represents the state of the relationship.
Constants
unformed 0 unformed the relationship is not formed
formed 1 formed the relationship is formed with the target object
missing-target 2 missing-target target does not exist
invalid-target 4 invalid-target invalid target DN
cardinality-violation 5 cardinality-violation cardinality violation - When relations are created such that they violate the cardinality, state of the relation would be set to this.
DEFAULT unformed(0) unformed the relationship is not formed




stateQual

Type: reln:StateQual
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
Represents the state qualifier of the relationship.
Constants
none 0 none no issue
mismatch-target 1 mismatch-target target not found, using default
default-target 2 default-target target not specified, using default
DEFAULT none(0) none no issue




status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus
    Comments:
The upgrade status. This property is for internal use only.
Constants
created 2u created In a setter method: specifies that an object should be created. An error is returned if the object already exists.
In the return value of a setter method: indicates that an object has been created.
modified 4u modified In a setter method: specifies that an object should be modified
In the return value of a setter method: indicates that an object has been modified.
deleted 8u deleted In a setter method: specifies that an object should be deleted.
In the return value of a setter method: indicates that an object has been deleted.
DEFAULT 0 --- This type controls the life cycle of objects passed in the XML API.

When used in a setter method (such as configConfMo), the ModificationStatus specifies whether an object should be created, modified, deleted or removed.
In the return value of a setter method, the ModificationStatus indicates the actual operation that was performed. For example, the ModificationStatus is set to "created" if the object was created. The ModificationStatus is not set if the object was neither created, modified, deleted or removed.

When invoking a setter method, the ModificationStatus is optional:
If a setter method such as configConfMo is invoked and the ModificationStatus is not set, the system automatically determines if the object should be created or modified.





tCl

Type: reln:ClassId
Primitive Type: scalar:Enum16

Overrides:reln:Inst:tCl

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
null
Constants
unspecified 0 unspecified NO COMMENTS
fabricAProtGEp 979 --- NO COMMENTS
fabricAutoGEp 986 --- NO COMMENTS
fabricMacAutoG 987 --- NO COMMENTS
fabricIPV4AutoG 988 --- NO COMMENTS
fabricIPV6AutoG 989 --- NO COMMENTS
fabricExplicitGEp 990 --- NO COMMENTS
fabricMacExpG 991 --- NO COMMENTS
fabricIPV4ExpG 992 --- NO COMMENTS
fabricIPV6ExpG 993 --- NO COMMENTS
DEFAULT fabricAProtGEp(979) --- NO COMMENTS




tDn

Type: reln:Dn
Primitive Type: reference:BinRef

Overrides:reln:Inst:tDn

Units: null
Encrypted: false
Access: admin
Category: TopLevelRegular
    Comments:
null


tType

Type: reln:TargetType
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular
    Comments:
The type of target.
Constants
name 0 name NO COMMENTS
mo 1 mo NO COMMENTS
all 2 all NO COMMENTS
DEFAULT mo(1) mo NO COMMENTS






Overview  Naming  Diagram  Containers  Contained  Inheritance  Events  Faults  FSMs  Properties Summary  Properties Detail
