Class lldp:IfStats (CONCRETE)

Class ID:2730
Class Label: Interface Statistics
Encrypted: false - Exportable: false - Persistent: true - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [access-protocol-l1, access-protocol-l2, admin, fabric-protocol-l1, fabric-protocol-l2, tenant-ext-protocol-l2, tenant-protocol-l2]
Creatable/Deletable: yes (see Container Mos for details)
Semantic Scope: Fabric
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: false, HasStats: false, HasFaults: false, HasHealth: false, HasEventRules: false ]

RN FORMAT: ifstats

    [1] PREFIX=ifstats


DN FORMAT:

[0] topology/pod-{id}/node-{id}/sys/lldp/inst/if-{[id]}/ifstats

[1] sys/lldp/inst/if-{[id]}/ifstats

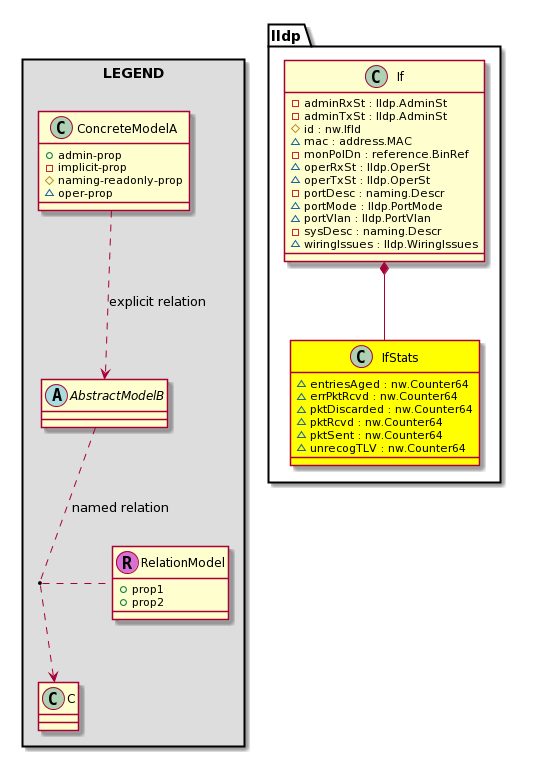

Diagram

Container Mos: lldp:If (deletable:yes),

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ lldp:Entity LLDP allows network devices to advertise information about themselves to other devices on the network. This protocol runs over the data-link layer, which allows two systems running different network layer protocols to learn about each other.            ├ lldp:Inst Link Layer Discovery Protocol (LLDP) supports a set of attributes that it uses to discover neighbor devices. These attributes contain type, length, and value descriptions and are referred to as TLVs. LLDP supported devices can use TLVs to receive and send information to their neighbors. Details such as configuration information, device capabilities, and device identity can be advertised using this protocol.              ├ lldp:If The LLDP interface, which holds the operational states.                ├ lldp:IfStats Holds LLDP INTF statistics operational information and is a singleton within an interface. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ lldp:Entity LLDP allows network devices to advertise information about themselves to other devices on the network. This protocol runs over the data-link layer, which allows two systems running different network layer protocols to learn about each other.      ├ lldp:Inst Link Layer Discovery Protocol (LLDP) supports a set of attributes that it uses to discover neighbor devices. These attributes contain type, length, and value descriptions and are referred to as TLVs. LLDP supported devices can use TLVs to receive and send information to their neighbors. Details such as configuration information, device capabilities, and device identity can be advertised using this protocol.        ├ lldp:If The LLDP interface, which holds the operational states.          ├ lldp:IfStats Holds LLDP INTF statistics operational information and is a singleton within an interface.

Contained Hierarchy

lldp:IfStats Holds LLDP INTF statistics operational information and is a singleton within an interface.

Inheritance

lldp:IfStats Holds LLDP INTF statistics operational information and is a singleton within an interface.

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

entriesAged

Type: nw:Counter64
Primitive Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The number of LLDP neighbor entries dropped on all ports after the time-to-live expired.

errPktRcvd

Type: nw:Counter64
Primitive Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

pktDiscarded

Type: nw:Counter64
Primitive Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The number of LLDP packets the port received then discarded.

pktRcvd

Type: nw:Counter64
Primitive Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The total number of LLDP packets received that have one or more detectable errors. This number is the total since the counter was last cleared.

pktSent

Type: nw:Counter64
Primitive Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.

unrecogTLV

Type: nw:Counter64
Primitive Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The number of TLVs the port received that were not recognized by the LLDP local agent. LLDP supports a set of attributes that it uses to discover neighbor devices. These attributes contain type, length, and value descriptions and are referred to as TLVs. LLDP supported devices can use TLVs to receive and send information to their neighbors. Details such as configuration information, device capabilities, and device identity can be advertised using this protocol.
