Class recovery:ReconcileCont (CONCRETE)

Class ID:7320
Encrypted: false - Exportable: false - Persistent: true - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [admin]
Creatable/Deletable: yes (see Container Mos for details)
Semantic Scope: None
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: true, HasStats: false, HasFaults: false, HasHealth: true, HasEventRules: false ]

RN FORMAT: recont

    [1] PREFIX=recont


DN FORMAT:

[0] recont

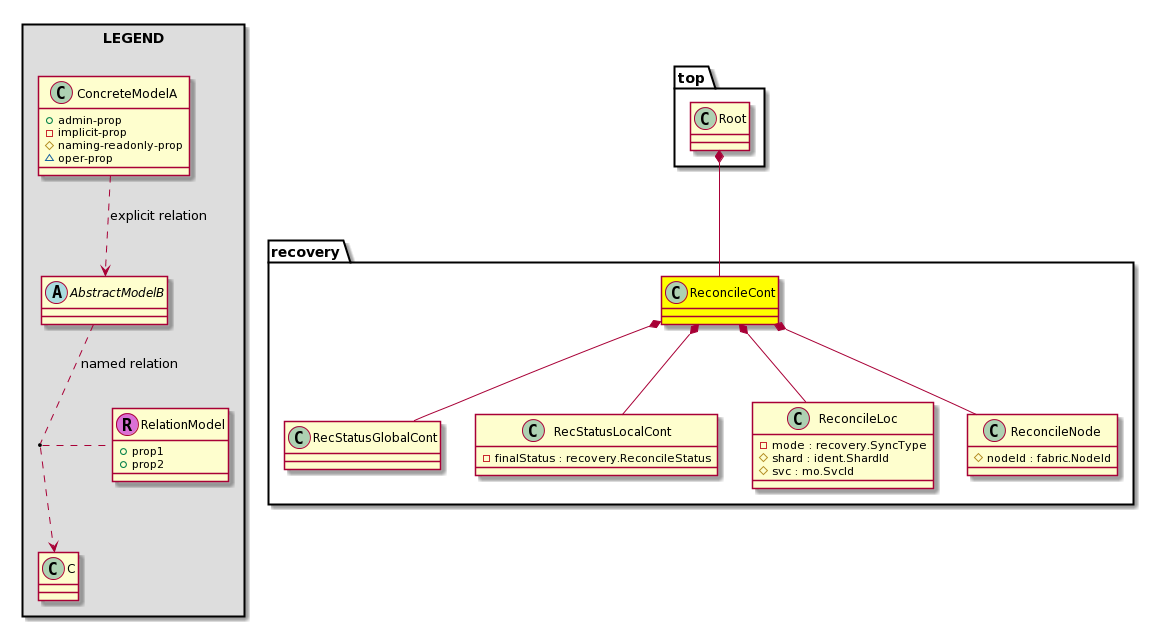

Diagram

Container Mos: top:Root (deletable:yes), Contained Mos: recovery:RecStatusGlobalCont, recovery:RecStatusLocalCont, recovery:ReconcileLoc, recovery:ReconcileNode,

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ recovery:ReconcileCont

Contained Hierarchy

recovery:ReconcileCont   ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.  ├ health:Inst A base class for a health score instance.(Switch only)  ├ recovery:RecStatusGlobalCont     ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.    ├ health:Inst A base class for a health score instance.(Switch only)    ├ recovery:RecStatusShard       ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.      ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.      ├ health:Inst A base class for a health score instance.(Switch only)  ├ recovery:RecStatusLocalCont     ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.    ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.    ├ health:Inst A base class for a health score instance.(Switch only)    ├ recovery:RecStatusNode   ├ recovery:ReconcileLoc     ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.    ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.    ├ health:Inst A base class for a health score instance.(Switch only)    ├ recovery:ReconcileInst   ├ recovery:ReconcileNode     ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.    ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.    ├ health:Inst A base class for a health score instance.(Switch only)

Inheritance

recovery:ReconcileCont

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

lcOwn

Type: mo:Owner
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

A value that indicates how this object was created. For internal use only.

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.
