Class svi:If (CONCRETE)

Class ID:3757
Class Label: Routed Vlan Interface
Encrypted: false - Exportable: false - Persistent: true - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [access-connectivity-l2, access-connectivity-l3, access-protocol-l3, admin, fabric-connectivity-l3, fabric-protocol-l3, tenant-connectivity-l3, tenant-ext-connectivity-l3, tenant-ext-protocol-l3, tenant-protocol-l3]
Creatable/Deletable: no (see Container Mos for details)
Semantic Scope: EPG
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: true, HasStats: true, HasFaults: true, HasHealth: true, HasEventRules: true ]

RN FORMAT: svi-{[id]}

    [1] PREFIX=svi- PROPERTY = id




DN FORMAT:

[0] topology/pod-{id}/node-{id}/sys/ctxsubstitute-{[encap]}/bd-{[fabEncap]}/svi-{[id]}

[1] sys/ctxsubstitute-{[encap]}/bd-{[fabEncap]}/svi-{[id]}

[2] topology/pod-{id}/node-{id}/sys/inst-{name}/bd-{[fabEncap]}/svi-{[id]}

[3] sys/inst-{name}/bd-{[fabEncap]}/svi-{[id]}

[4] topology/pod-{id}/node-{id}/sys/ctx-{[encap]}/bd-{[fabEncap]}/svi-{[id]}

[5] sys/ctx-{[encap]}/bd-{[fabEncap]}/svi-{[id]}

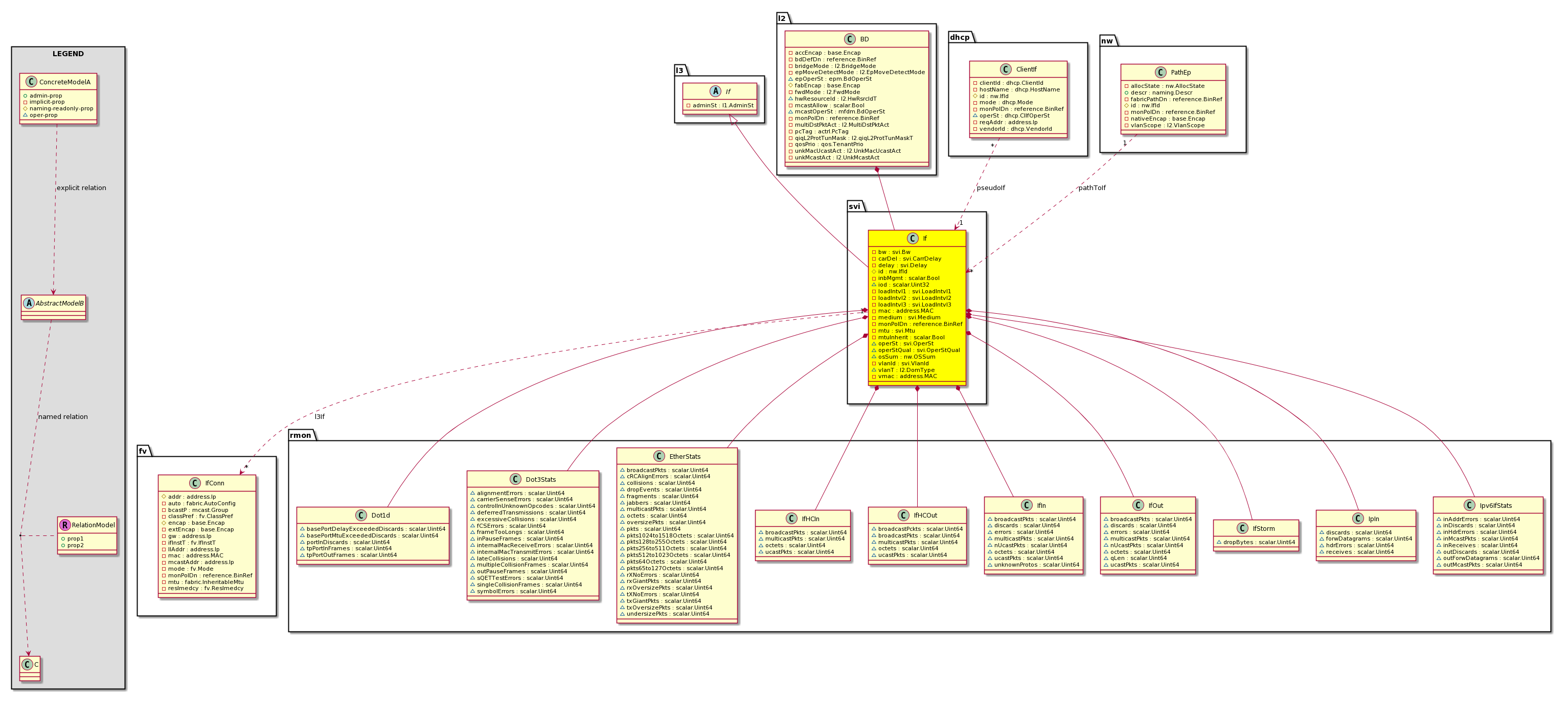

Diagram

Super Mo: l3:If, Container Mos: l2:BD (deletable:no), Contained Mos: rmon:Dot1d, rmon:Dot3Stats, rmon:EtherStats, rmon:IfHCIn, rmon:IfHCOut, rmon:IfIn, rmon:IfOut, rmon:IfStorm, rmon:IpIn, rmon:Ipv6IfStats, Relations From: dhcp:ClientIf, nw:PathEp, Relations To: fv:IfConn, Relations: l3:RsL3If, l3:RtPseudoIf, nw:RtPathToIf,

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l3:CtxSubstitute  Tenant context object substitute. Its needed for internal PE purposes but it doesnt instantiate any VRF in the node.            ├ l2:BD The Layer 2 Bridge-domain identifies the boundary of a tenant’s bridged/layer 2 traffic. This is similar to a VLAN in a traditional layer 2 switched network.              ├ svi:If A routed VLAN interface. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l3:CtxSubstitute  Tenant context object substitute. Its needed for internal PE purposes but it doesnt instantiate any VRF in the node.      ├ l2:BD The Layer 2 Bridge-domain identifies the boundary of a tenant’s bridged/layer 2 traffic. This is similar to a VLAN in a traditional layer 2 switched network.        ├ svi:If A routed VLAN interface. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l3:Inst The infra VRF is created for the iNXOS fabric infrastructure. All communications between fabric elements, such as spine, leaf and vleaf, take place in this VRF.            ├ l2:BD The Layer 2 Bridge-domain identifies the boundary of a tenant’s bridged/layer 2 traffic. This is similar to a VLAN in a traditional layer 2 switched network.              ├ svi:If A routed VLAN interface. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l3:Inst The infra VRF is created for the iNXOS fabric infrastructure. All communications between fabric elements, such as spine, leaf and vleaf, take place in this VRF.      ├ l2:BD The Layer 2 Bridge-domain identifies the boundary of a tenant’s bridged/layer 2 traffic. This is similar to a VLAN in a traditional layer 2 switched network.        ├ svi:If A routed VLAN interface. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l3:Ctx The tenant context information is equivalent to a virtual routing and forwarding (VRF) instance created for the tenant's L3 network. Similar to a VRF in traditional Cisco routers, the tenant context isolates the IP addresses of the tenant, allowing different tenants to have overlapping IP addresses.            ├ l2:BD The Layer 2 Bridge-domain identifies the boundary of a tenant’s bridged/layer 2 traffic. This is similar to a VLAN in a traditional layer 2 switched network.              ├ svi:If A routed VLAN interface. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l3:Ctx The tenant context information is equivalent to a virtual routing and forwarding (VRF) instance created for the tenant's L3 network. Similar to a VRF in traditional Cisco routers, the tenant context isolates the IP addresses of the tenant, allowing different tenants to have overlapping IP addresses.      ├ l2:BD The Layer 2 Bridge-domain identifies the boundary of a tenant’s bridged/layer 2 traffic. This is similar to a VLAN in a traditional layer 2 switched network.        ├ svi:If A routed VLAN interface.

Contained Hierarchy

svi:If A routed VLAN interface.  ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.  ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.  ├ health:Inst A base class for a health score instance.(Switch only)  ├ l3:RsL3If The source of the sub-interface/l3-interface.  ├ l3:RtPseudoIf A target relation to the abstract layer 3 interface. If the mode is pseudo interface, the list of all interfaces the DHCP requests is flooded.  ├ nw:RtPathToIf A target relation to the interface information.  ├ rmon:Dot1d The Dot1d statistics.  ├ rmon:Dot3Stats The Dot3 statistics.  ├ rmon:EtherStats The Ethernet statistics.  ├ rmon:IfHCIn The interface high capacity input statistics.  ├ rmon:IfHCOut The interface high capacity output statistics.  ├ rmon:IfIn The interface input statistics.  ├ rmon:IfOut The interface output statistics.  ├ rmon:IfStorm   ├ rmon:IpIn The IPV4 input statistics.  ├ rmon:Ipv6IfStats The IPV6 interface statistics.

Inheritance

nw:Item Ignore.  ├ nw:Conn A connection abstraction.    ├ nw:Ep A static endpoint.      ├ nw:ConnEp A connection endpoint abstraction.        ├ nw:If The interface information.          ├ nw:LogicalIf A logical interface abstraction.            ├ l3:If An abstract layer 3 interface.              ├ svi:If A routed VLAN interface.

Stats

svi:If A routed VLAN interface.  ├ dpp:IngrAllow15min A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 15 minute sampling interval. This class updates every 5 minutes.  ├ dpp:IngrAllow1d A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 1 day sampling interval. This class updates every hour.  ├ dpp:IngrAllow1h A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 1 hour sampling interval. This class updates every 15 minutes.  ├ dpp:IngrAllow1mo A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 1 month sampling interval. This class updates every day.  ├ dpp:IngrAllow1qtr A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 1 quarter sampling interval. This class updates every day.  ├ dpp:IngrAllow1w A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 1 week sampling interval. This class updates every day.  ├ dpp:IngrAllow1year A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 1 year sampling interval. This class updates every day.  ├ dpp:IngrAllow5min A class that represents the most current statistics for Ingress Data Plane Policer Allow Counters in a 5 minute sampling interval. This class updates every 10 seconds.  ├ dpp:IngrAllowHist15min A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 15 minute sampling interval. This class updates every 5 minutes.  ├ dpp:IngrAllowHist1d A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 1 day sampling interval. This class updates every hour.  ├ dpp:IngrAllowHist1h A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 1 hour sampling interval. This class updates every 15 minutes.  ├ dpp:IngrAllowHist1mo A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 1 month sampling interval. This class updates every day.  ├ dpp:IngrAllowHist1qtr A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 1 quarter sampling interval. This class updates every day.  ├ dpp:IngrAllowHist1w A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 1 week sampling interval. This class updates every day.  ├ dpp:IngrAllowHist1year A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 1 year sampling interval. This class updates every day.  ├ dpp:IngrAllowHist5min A class that represents historical statistics for Ingress Data Plane Policer Allow Counters in a 5 minute sampling interval. This class updates every 10 seconds.  ├ dpp:IngrDrop15min A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 15 minute sampling interval. This class updates every 5 minutes.  ├ dpp:IngrDrop1d A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 1 day sampling interval. This class updates every hour.  ├ dpp:IngrDrop1h A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 1 hour sampling interval. This class updates every 15 minutes.  ├ dpp:IngrDrop1mo A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 1 month sampling interval. This class updates every day.  ├ dpp:IngrDrop1qtr A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 1 quarter sampling interval. This class updates every day.  ├ dpp:IngrDrop1w A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 1 week sampling interval. This class updates every day.  ├ dpp:IngrDrop1year A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 1 year sampling interval. This class updates every day.  ├ dpp:IngrDrop5min A class that represents the most current statistics for Ingress Data Plane Policer Drop Counters in a 5 minute sampling interval. This class updates every 10 seconds.  ├ dpp:IngrDropHist15min A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 15 minute sampling interval. This class updates every 5 minutes.  ├ dpp:IngrDropHist1d A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 1 day sampling interval. This class updates every hour.  ├ dpp:IngrDropHist1h A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 1 hour sampling interval. This class updates every 15 minutes.  ├ dpp:IngrDropHist1mo A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 1 month sampling interval. This class updates every day.  ├ dpp:IngrDropHist1qtr A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 1 quarter sampling interval. This class updates every day.  ├ dpp:IngrDropHist1w A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 1 week sampling interval. This class updates every day.  ├ dpp:IngrDropHist1year A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 1 year sampling interval. This class updates every day.  ├ dpp:IngrDropHist5min A class that represents historical statistics for Ingress Data Plane Policer Drop Counters in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:EgrBytes15min Egress byte. A class that represents the most current statistics for egress bytes in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:EgrBytes1d Egress byte. A class that represents the most current statistics for egress bytes in a 1 day sampling interval. This class updates every hour.  ├ l2:EgrBytes1h Egress byte. A class that represents the most current statistics for egress bytes in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:EgrBytes1mo Egress byte. A class that represents the most current statistics for egress bytes in a 1 month sampling interval. This class updates every day.  ├ l2:EgrBytes1qtr Egress byte. A class that represents the most current statistics for egress bytes in a 1 quarter sampling interval. This class updates every day.  ├ l2:EgrBytes1w Egress byte. A class that represents the most current statistics for egress bytes in a 1 week sampling interval. This class updates every day.  ├ l2:EgrBytes1year Egress byte. A class that represents the most current statistics for egress bytes in a 1 year sampling interval. This class updates every day.  ├ l2:EgrBytes5min Egress byte. A class that represents the most current statistics for egress bytes in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:EgrBytesHist15min Egress byte. A class that represents historical statistics for egress bytes in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:EgrBytesHist1d Egress byte. A class that represents historical statistics for egress bytes in a 1 day sampling interval. This class updates every hour.  ├ l2:EgrBytesHist1h Egress byte. A class that represents historical statistics for egress bytes in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:EgrBytesHist1mo Egress byte. A class that represents historical statistics for egress bytes in a 1 month sampling interval. This class updates every day.  ├ l2:EgrBytesHist1qtr Egress byte. A class that represents historical statistics for egress bytes in a 1 quarter sampling interval. This class updates every day.  ├ l2:EgrBytesHist1w Egress byte. A class that represents historical statistics for egress bytes in a 1 week sampling interval. This class updates every day.  ├ l2:EgrBytesHist1year Egress byte. A class that represents historical statistics for egress bytes in a 1 year sampling interval. This class updates every day.  ├ l2:EgrBytesHist5min Egress byte. A class that represents historical statistics for egress bytes in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:EgrPkts15min Egress packet. A class that represents the most current statistics for egress packets in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:EgrPkts1d Egress packet. A class that represents the most current statistics for egress packets in a 1 day sampling interval. This class updates every hour.  ├ l2:EgrPkts1h Egress packet. A class that represents the most current statistics for egress packets in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:EgrPkts1mo Egress packet. A class that represents the most current statistics for egress packets in a 1 month sampling interval. This class updates every day.  ├ l2:EgrPkts1qtr Egress packet. A class that represents the most current statistics for egress packets in a 1 quarter sampling interval. This class updates every day.  ├ l2:EgrPkts1w Egress packet. A class that represents the most current statistics for egress packets in a 1 week sampling interval. This class updates every day.  ├ l2:EgrPkts1year Egress packet. A class that represents the most current statistics for egress packets in a 1 year sampling interval. This class updates every day.  ├ l2:EgrPkts5min Egress packet. A class that represents the most current statistics for egress packets in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:EgrPktsHist15min Egress packet. A class that represents historical statistics for egress packets in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:EgrPktsHist1d Egress packet. A class that represents historical statistics for egress packets in a 1 day sampling interval. This class updates every hour.  ├ l2:EgrPktsHist1h Egress packet. A class that represents historical statistics for egress packets in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:EgrPktsHist1mo Egress packet. A class that represents historical statistics for egress packets in a 1 month sampling interval. This class updates every day.  ├ l2:EgrPktsHist1qtr Egress packet. A class that represents historical statistics for egress packets in a 1 quarter sampling interval. This class updates every day.  ├ l2:EgrPktsHist1w Egress packet. A class that represents historical statistics for egress packets in a 1 week sampling interval. This class updates every day.  ├ l2:EgrPktsHist1year Egress packet. A class that represents historical statistics for egress packets in a 1 year sampling interval. This class updates every day.  ├ l2:EgrPktsHist5min Egress packet. A class that represents historical statistics for egress packets in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:IngrBytes15min A class that represents the most current statistics for ingress bytes in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:IngrBytes1d A class that represents the most current statistics for ingress bytes in a 1 day sampling interval. This class updates every hour.  ├ l2:IngrBytes1h A class that represents the most current statistics for ingress bytes in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:IngrBytes1mo A class that represents the most current statistics for ingress bytes in a 1 month sampling interval. This class updates every day.  ├ l2:IngrBytes1qtr A class that represents the most current statistics for ingress bytes in a 1 quarter sampling interval. This class updates every day.  ├ l2:IngrBytes1w A class that represents the most current statistics for ingress bytes in a 1 week sampling interval. This class updates every day.  ├ l2:IngrBytes1year A class that represents the most current statistics for ingress bytes in a 1 year sampling interval. This class updates every day.  ├ l2:IngrBytes5min A class that represents the most current statistics for ingress bytes in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:IngrBytesHist15min A class that represents historical statistics for ingress bytes in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:IngrBytesHist1d A class that represents historical statistics for ingress bytes in a 1 day sampling interval. This class updates every hour.  ├ l2:IngrBytesHist1h A class that represents historical statistics for ingress bytes in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:IngrBytesHist1mo A class that represents historical statistics for ingress bytes in a 1 month sampling interval. This class updates every day.  ├ l2:IngrBytesHist1qtr A class that represents historical statistics for ingress bytes in a 1 quarter sampling interval. This class updates every day.  ├ l2:IngrBytesHist1w A class that represents historical statistics for ingress bytes in a 1 week sampling interval. This class updates every day.  ├ l2:IngrBytesHist1year A class that represents historical statistics for ingress bytes in a 1 year sampling interval. This class updates every day.  ├ l2:IngrBytesHist5min A class that represents historical statistics for ingress bytes in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:IngrPkts15min A class that represents the most current statistics for ingress packets in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:IngrPkts1d A class that represents the most current statistics for ingress packets in a 1 day sampling interval. This class updates every hour.  ├ l2:IngrPkts1h A class that represents the most current statistics for ingress packets in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:IngrPkts1mo A class that represents the most current statistics for ingress packets in a 1 month sampling interval. This class updates every day.  ├ l2:IngrPkts1qtr A class that represents the most current statistics for ingress packets in a 1 quarter sampling interval. This class updates every day.  ├ l2:IngrPkts1w A class that represents the most current statistics for ingress packets in a 1 week sampling interval. This class updates every day.  ├ l2:IngrPkts1year A class that represents the most current statistics for ingress packets in a 1 year sampling interval. This class updates every day.  ├ l2:IngrPkts5min A class that represents the most current statistics for ingress packets in a 5 minute sampling interval. This class updates every 10 seconds.  ├ l2:IngrPktsHist15min A class that represents historical statistics for ingress packets in a 15 minute sampling interval. This class updates every 5 minutes.  ├ l2:IngrPktsHist1d A class that represents historical statistics for ingress packets in a 1 day sampling interval. This class updates every hour.  ├ l2:IngrPktsHist1h A class that represents historical statistics for ingress packets in a 1 hour sampling interval. This class updates every 15 minutes.  ├ l2:IngrPktsHist1mo A class that represents historical statistics for ingress packets in a 1 month sampling interval. This class updates every day.  ├ l2:IngrPktsHist1qtr A class that represents historical statistics for ingress packets in a 1 quarter sampling interval. This class updates every day.  ├ l2:IngrPktsHist1w A class that represents historical statistics for ingress packets in a 1 week sampling interval. This class updates every day.  ├ l2:IngrPktsHist1year A class that represents historical statistics for ingress packets in a 1 year sampling interval. This class updates every day.  ├ l2:IngrPktsHist5min A class that represents historical statistics for ingress packets in a 5 minute sampling interval. This class updates every 10 seconds.

                svi:If:svi_If_operStChange



                svi:If:portDown



adminSt

Type: l1:AdminSt
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Administrative state

bw

Type: svi:Bw
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Specifies the administrative port bandwidth.

carDel

Type: svi:CarrDelay
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The hold period for which carrier transition, such as L2 interfacing going down, is ignored.

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

delay

Type: svi:Delay
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Specifies the administrative port delay.

descr

Type: naming:Descr
Primitive Type: string:Basic

Like: naming:Described:descr
Units: null
Encrypted: false
Access: admin
Category: TopLevelRegular

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

id

Type: nw:IfId
Primitive Type: base:IfIndex

Overrides:nw:If:id

Units: null
Encrypted: false
Naming Property -- [NAMING RULES]
Access: naming
Category: TopLevelRegular

The routed VLAN interface identifier.

inbMgmt

Type: scalar:Bool

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

An in-band management interface configuration.

iod

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Specifies the IOD.

lcOwn

Type: mo:Owner
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

A value that indicates how this object was created. For internal use only.

loadIntvl1

Type: svi:LoadIntvl1
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

loadIntvl2

Type: svi:LoadIntvl2
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

loadIntvl3

Type: svi:LoadIntvl3
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

mac

Type: address:MAC

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The MAC address.

medium

Type: svi:Medium
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Indicates the administrative port medium type.

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

monPolDn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

mtu

Type: svi:Mtu
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The administrative MTU port on the aggregated interface.

mtuInherit

Type: scalar:Bool

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

A property for specifying if the MTU is inherited from global policy.

name

Type: naming:Name
Primitive Type: string:Basic

Overrides:nw:Conn:name

Units: null
Encrypted: false
Access: admin
Category: TopLevelRegular

The name of the object.

operSt

Type: svi:OperSt
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The runtime state of the object or policy.

operStQual

Type: svi:OperStQual
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The chassis operational status qualifier.

osSum

Type: nw:OSSum
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational state summary.

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.

vlanId

Type: svi:VlanId
Primitive Type: scalar:Uint16

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The VLAN ID associated with the SVI.

vlanT

Type: l2:DomType
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The VLAN type.

vmac

Type: address:MAC

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Virtual MAC address of the SVI. This mac is used when hosts arp for this SVI's virtual IP. This is a reserved MAC address and all the l3 interfaces by default use this mac as the router mac. If users want then they can override this value through IFC with a different mac address
