Class vns:BDHolder (CONCRETE)

Class ID:8954
Encrypted: false - Exportable: false - Persistent: true - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [admin, nw-svc-device, nw-svc-policy]
Creatable/Deletable: yes (see Container Mos for details)
Semantic Scope: None
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: false, HasStats: false, HasFaults: false, HasHealth: false, HasEventRules: false ]

RN FORMAT: bdholder-{[bdDn]}

    [1] PREFIX=bdholder- PROPERTY = bdDn




DN FORMAT:

[0] bdholder-{[bdDn]}

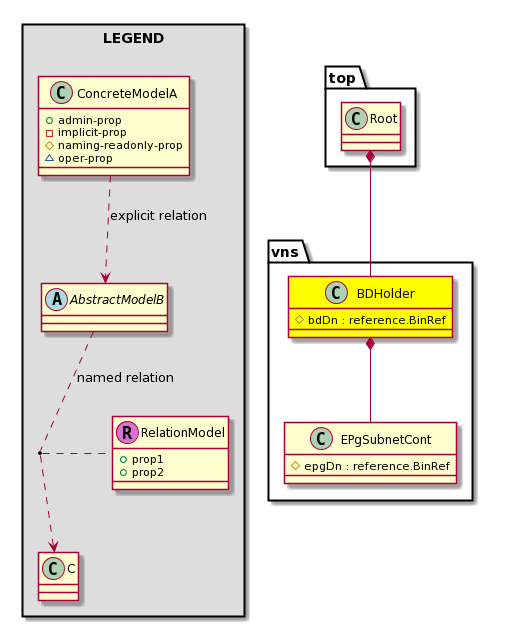

Diagram

Container Mos: top:Root (deletable:yes), Contained Mos: vns:EPgSubnetCont,

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ vns:BDHolder

Contained Hierarchy

vns:BDHolder   ├ vns:EPgSubnetCont     ├ ip:RouteDef The route definitions, which are are used for pushing subnets and static routes to PE. They also push subnets under EpPD to VMMMGR (for configuring external networks in vCD).      ├ fault:Delegate Exposes internal faults to the user. A fault delegate object can be defined on IFC (for example, for an endpoint group) and when the fault is raised (for example, under an endpoint policy on a switch), a fault delegate object is created on IFC under the specified object. A fault delegate object follows the lifecycle of the original fault instance object, being created, modified, or deleted based on the changes of the original fault.      ├ ip:NexthopDef The Nexthops for the static route.        ├ fault:Delegate Exposes internal faults to the user. A fault delegate object can be defined on IFC (for example, for an endpoint group) and when the fault is raised (for example, under an endpoint policy on a switch), a fault delegate object is created on IFC under the specified object. A fault delegate object follows the lifecycle of the original fault instance object, being created, modified, or deleted based on the changes of the original fault.        ├ ip:RtNexthopToNexthopDef A target relation to the next hops for the static route.      ├ ip:RtRouteToRouteDef A target relation to the route definitions.      ├ ip:RtRtDefIpAddr A target relation to the route definitions.      ├ nd:PfxPolDef The neighbor discovery prefix policy definition.        ├ fault:Delegate Exposes internal faults to the user. A fault delegate object can be defined on IFC (for example, for an endpoint group) and when the fault is raised (for example, under an endpoint policy on a switch), a fault delegate object is created on IFC under the specified object. A fault delegate object follows the lifecycle of the original fault instance object, being created, modified, or deleted based on the changes of the original fault.

Inheritance

vns:BDHolder

bdDn

Type: reference:BinRef

Units: null
Encrypted: false
Naming Property -- [NAMING RULES]
Access: naming
Category: TopLevelRegular

The distinguished name of the bridge domain.

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

lcOwn

Type: mo:Owner
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

A value that indicates how this object was created. For internal use only.

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.
