Class ethpm:PhysIf (CONCRETE)

Class ID:3641
Class Label: Physical Interface Runtime State (ethpm)
Encrypted: false - Exportable: false - Persistent: false - Configurable: false - Subject to Quota: Disabled
Write Access: [NON CONFIGURABLE]
Read Access: [access-connectivity-l1, admin]
Creatable/Deletable: yes (see Container Mos for details)
Possible Semantic Scopes: Infra, Fabric,
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: true, HasStats: false, HasFaults: true, HasHealth: true, HasEventRules: true ]

RN FORMAT: phys

    [1] PREFIX=phys


DN FORMAT:

[0] topology/pod-{id}/node-{id}/sys/phys-{[id]}/phys

[1] sys/phys-{[id]}/phys

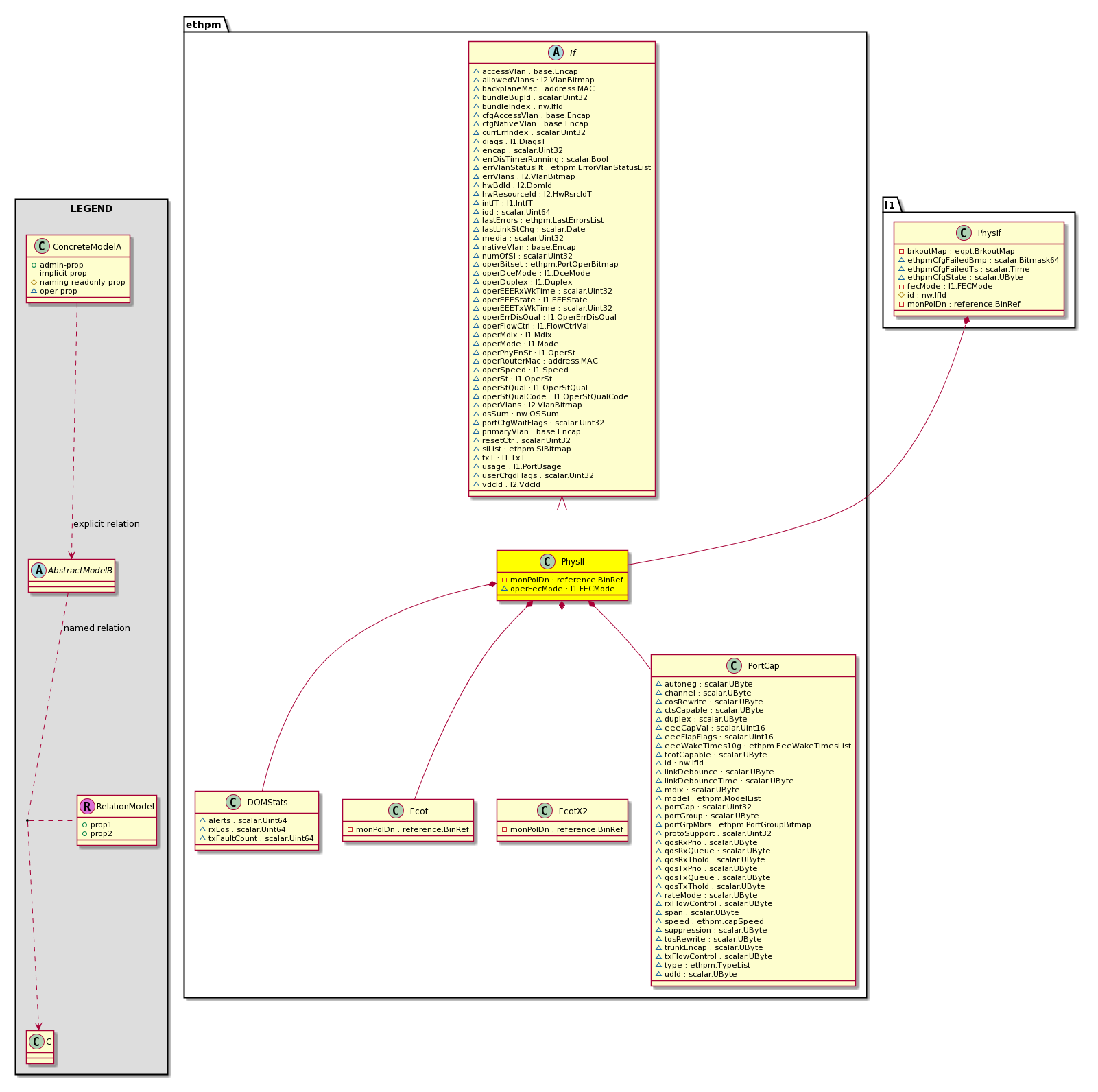

Diagram

Super Mo: ethpm:If, Container Mos: l1:PhysIf (deletable:yes), Contained Mos: ethpm:DOMStats, ethpm:Fcot, ethpm:FcotX2, ethpm:PortCap,

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...          ├ l1:PhysIf The object that represents the Layer 1 physical Ethernet interface information object.            ├ ethpm:PhysIf Physical interface information holder top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ top:System The APIC uses a policy model to combine data into a health score. Health scores can be aggregated for a variety of areas such as for the infrastructure, applications, or services. The category health score is calculated using a Lp -Norm formula. The health score penalty equals 100 minus the health score. The health score penalty represents the overall health score penalties of a set of MOs that belong to a given category and are children or direc...    ├ l1:PhysIf The object that represents the Layer 1 physical Ethernet interface information object.      ├ ethpm:PhysIf Physical interface information holder

Contained Hierarchy

ethpm:PhysIf Physical interface information holder  ├ ethpm:DOMStats  Digital Optical Monitor details    ├ ethpm:DOMCurrentStats  Dynamic Current Information per port info    ├ ethpm:DOMRxPwrStats  Dynamic Rx Power Information per port info    ├ ethpm:DOMTempStats  Temperature Dynamic per port info    ├ ethpm:DOMTxPwrStats  Dynamic Tx Power Information per port info    ├ ethpm:DOMVoltStats  Dynamic Voltage Information per port info  ├ ethpm:Fcot Class for regular Fibre Channel optical transmitter types.    ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.    ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.    ├ health:Inst A base class for a health score instance.(Switch only)  ├ ethpm:FcotX2 The class for X2 Fibre Channel optical transmitter types.    ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.    ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.    ├ health:Inst A base class for a health score instance.(Switch only)  ├ ethpm:PortCap Port runtime capabilities, for example maximum speed.  ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.  ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.  ├ health:Inst A base class for a health score instance.(Switch only)

Inheritance

ethpm:If Interface information holder.  ├ ethpm:PhysIf Physical interface information holder

                ethpm:If:ethpm_If_portup

                ethpm:If:ethpm_If_portInfoDown



                ethpm:If:portDownFabric

                ethpm:If:portDownInfraEpg

                ethpm:If:portDownInfraNoEpg

                ethpm:If:portDownNoInfra



accessVlan

Type: base:Encap

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The VLAN port access state.

allowedVlans

Type: l2:VlanBitmap
Primitive Type: base:BitArray4096

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

allowed vlans

backplaneMac

Type: address:MAC

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port backplane mac

bundleBupId

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

bundle bringup id

bundleIndex

Type: nw:IfId
Primitive Type: base:IfIndex

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The interface bundle index. A bundle index is a table for a particular output primitive. It defines the workstation dependent aspects of the primitive.

cfgAccessVlan

Type: base:Encap

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The port configuration access VLAN.

cfgNativeVlan

Type: base:Encap

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The port configuration native VLAN.

childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

currErrIndex

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

current error index

diags

Type: l1:DiagsT
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port diags type

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

encap

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port encap

errDisTimerRunning

Type: scalar:Bool

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

error disable recovery time running

errVlanStatusHt

Type: ethpm:ErrorVlanStatusList
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port per vlan error state

errVlans

Type: l2:VlanBitmap
Primitive Type: base:BitArray4096

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

errored vlans

hwBdId

Type: l2:DomId
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

hw bd id (allocated for l3 ports, port-channels)

hwResourceId

Type: l2:HwRsrcIdT
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Hardware resource identifier (allocated by eltm)

intfT

Type: l1:IntfT
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

interface type

iod

Type: scalar:Uint64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

iod

lastErrors

Type: ethpm:LastErrorsList
Primitive Type: base:Uint32Array4

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

last seen errors

lastLinkStChg

Type: scalar:Date

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Last link state change

media

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port media

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

monPolDn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

nativeVlan

Type: base:Encap

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port native vlan

numOfSI

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

number of sub-interfaces

operBitset

Type: ethpm:PortOperBitmap
Primitive Type: base:BitArray64

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port oper bitset

operDceMode

Type: l1:DceMode
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational Dce Mode

operDuplex

Type: l1:Duplex
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational duplex state.

operEEERxWkTime

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port EEE rx time

operEEEState

Type: l1:EEEState
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port EEE state

operEEETxWkTime

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port EEE tx time

operErrDisQual

Type: l1:OperErrDisQual
Primitive Type: scalar:Enum32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational port error disable reason code.

operFecMode

Type: l1:FECMode
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

FEC knob

operFlowCtrl

Type: l1:FlowCtrlVal
Primitive Type: scalar:UByte

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port flow control

operMdix

Type: l1:Mdix
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port oper mdix mode

operMode

Type: l1:Mode
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational port mode.

operPhyEnSt

Type: l1:OperSt
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational phy port enable state

operRouterMac

Type: address:MAC

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port router mac

operSpeed

Type: l1:Speed
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port speed

operSt

Type: l1:OperSt
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational port state.

operStQual

Type: l1:OperStQual
Primitive Type: scalar:Enum32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

The operational state failure reason.

operStQualCode

Type: l1:OperStQualCode
Primitive Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational port status syserror code

operVlans

Type: l2:VlanBitmap
Primitive Type: base:BitArray4096

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

operational vlans

osSum

Type: nw:OSSum
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

Operational state summary

portCfgWaitFlags

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port config wait flags

primaryVlan

Type: base:Encap

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port primary-vlan

resetCtr

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

reset counter

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

siList

Type: ethpm:SiBitmap
Primitive Type: base:BitArray4096

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

configured sub-interface ids

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.

txT

Type: l1:TxT
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port Tx type

usage

Type: l1:PortUsage
Primitive Type: scalar:Bitmask32

Like: l1:EthIf:usage
Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

userCfgdFlags

Type: scalar:Uint32

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

port user config flags

vdcId

Type: l2:VdcId
Primitive Type: scalar:Uint16

Units: null
Encrypted: false
Access: oper
Category: TopLevelRegular

vdc id
