Class file:RsARemoteHostToEpp (CONCRETE)

Class ID:5360
Class Label: Relation to Remote Host Reachability EPP
Encrypted: false - Exportable: true - Persistent: true - Configurable: true - Subject to Quota: Disabled
Relationship Type: explicit
Relationship Cardinality: n-to-1
Relationship From: file:ARemoteHost
Relationship From Rel: file:RsARemoteHostToEpp
Relationship To: fv:AREpP
Relationship To Rel: fv:RtARemoteHostToEpp
Enforceable: true
Resolvable: true
Write Access: [admin]
Read Access: [admin]
Creatable/Deletable: no (see Container Mos for details)
Possible Semantic Scopes: EPG, Infra, Fabric,
Semantic Scope Evaluation Rule: Parent
Monitoring Policy Source: Parent
Monitoring Flags : [ IsObservable: true, HasStats: false, HasFaults: true, HasHealth: true, HasEventRules: false ]

RN FORMAT: rsARemoteHostToEpp

    [1] PREFIX=rsARemoteHostToEpp


DN FORMAT:

[1] uni/fabric/slgroup-{name}/rdst-{host}/rsARemoteHostToEpp

[3] uni/fabric/chgroup-{name}/prof/smtp/rsARemoteHostToEpp

[5] uni/fabric/snmpgroup-{name}/trapdest-{host}-port-{port}/rsARemoteHostToEpp

[7] uni/fabric/path-{name}/rsARemoteHostToEpp

[9] uni/tn-{name}/monepg-{name}/tarepg-{scope}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[11] uni/tn-{name}/monepg-{name}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[13] uni/infra/moninfra-{name}/tarinfra-{scope}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[15] uni/infra/moninfra-{name}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[17] uni/fabric/monfab-{name}/tarfab-{scope}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[19] uni/fabric/monfab-{name}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[21] uni/tn-{name}/monepg-{name}/tarepg-{scope}/stat-{scope}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[23] uni/infra/moninfra-{name}/tarinfra-{scope}/stat-{scope}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

[25] uni/fabric/monfab-{name}/tarfab-{scope}/stat-{scope}/exp-{frequency}/dest-{name}/rsARemoteHostToEpp

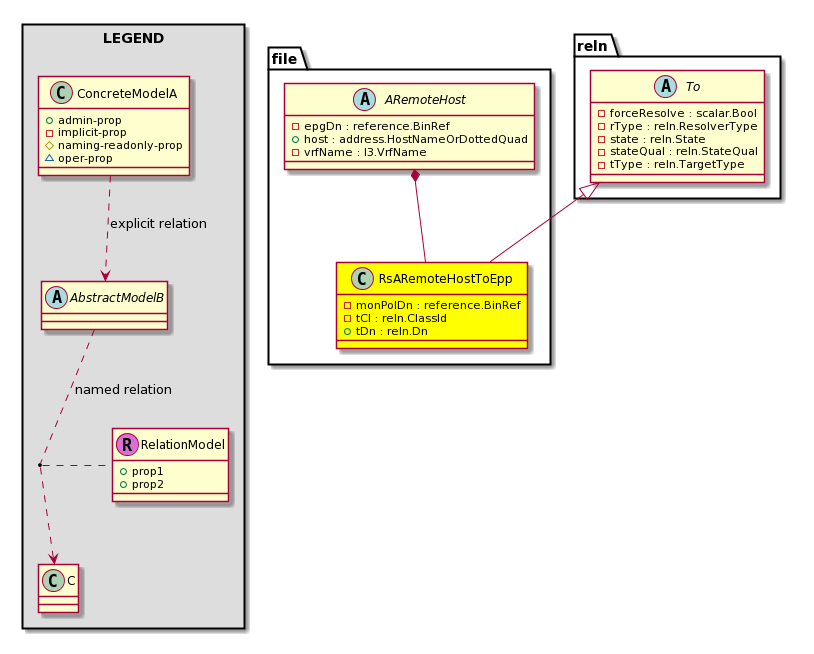

Diagram

Super Mo: reln:To, Container Mos: file:ARemoteHost (deletable:no),

Containers Hierarchies

top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ syslog:Group The syslog destination group contains all information required to send syslog messages to a group of destinations.                  ├ syslog:RemoteDest The syslog remote destination host enables you to specify syslog servers to which messages from the APIC and fabric nodes should be forwarded.                    ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ syslog:Group The syslog destination group contains all information required to send syslog messages to a group of destinations.        ├ syslog:RemoteDest The syslog remote destination host enables you to specify syslog servers to which messages from the APIC and fabric nodes should be forwarded.          ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ callhome:Group Call Home provides an email-based notification for critical system policies. A range of message formats are available for compatibility with pager services or XML-based automated parsing applications. You can use this feature to page a network support engineer, email a Network Operations Center, or use Cisco Smart Call Home services to generate a case with the Technical Assistance Center.                  ├ callhome:Prof Contains all site information and the address of the SMTP server used to send emails.                    ├ callhome:SmtpServer The hostname or IP for export destination. Call Home sends email messages to either the IP address or hostname, and the associated port number.                      ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ callhome:Group Call Home provides an email-based notification for critical system policies. A range of message formats are available for compatibility with pager services or XML-based automated parsing applications. You can use this feature to page a network support engineer, email a Network Operations Center, or use Cisco Smart Call Home services to generate a case with the Technical Assistance Center.        ├ callhome:Prof Contains all site information and the address of the SMTP server used to send emails.          ├ callhome:SmtpServer The hostname or IP for export destination. Call Home sends email messages to either the IP address or hostname, and the associated port number.            ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ snmp:Group The SNMP destination group contains information needed to send traps or informs to a set of destinations.. SNMP is an application-layer protocol that provides a message format for communication between SNMP managers and agents. SNMP provides a standardized framework and a common language used for the monitoring and management of devices in a network.                  ├ snmp:TrapDest A destination to which traps and informs are sent.                    ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ snmp:Group The SNMP destination group contains information needed to send traps or informs to a set of destinations.. SNMP is an application-layer protocol that provides a message format for communication between SNMP managers and agents. SNMP provides a standardized framework and a common language used for the monitoring and management of devices in a network.        ├ snmp:TrapDest A destination to which traps and informs are sent.          ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ file:RemotePath The remote destination path parameters for the data export.                  ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ file:RemotePath The remote destination path parameters for the data export.        ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fv:Tenant A policy owner in the virtual fabric. A tenant can be either a private or a shared entity. For example, you can create a tenant with contexts and bridge domains shared by other tenants. A shared type of tenant is typically named common, default, or infra.                ├ mon:EPGPol Creates a container for monitoring policies associated with the tenant. This allows you to apply tenant-specific policies related to Stats Collection, Stats Export, Callhome/SNMP/Syslog, Event Severities, Fault Severities, and Fault Lifecycles.                  ├ mon:EPGTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for this tenant. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.                    ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                      ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                        ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fv:Tenant A policy owner in the virtual fabric. A tenant can be either a private or a shared entity. For example, you can create a tenant with contexts and bridge domains shared by other tenants. A shared type of tenant is typically named common, default, or infra.      ├ mon:EPGPol Creates a container for monitoring policies associated with the tenant. This allows you to apply tenant-specific policies related to Stats Collection, Stats Export, Callhome/SNMP/Syslog, Event Severities, Fault Severities, and Fault Lifecycles.        ├ mon:EPGTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for this tenant. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.          ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.            ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...              ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fv:Tenant A policy owner in the virtual fabric. A tenant can be either a private or a shared entity. For example, you can create a tenant with contexts and bridge domains shared by other tenants. A shared type of tenant is typically named common, default, or infra.                ├ mon:EPGPol Creates a container for monitoring policies associated with the tenant. This allows you to apply tenant-specific policies related to Stats Collection, Stats Export, Callhome/SNMP/Syslog, Event Severities, Fault Severities, and Fault Lifecycles.                  ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                    ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                      ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fv:Tenant A policy owner in the virtual fabric. A tenant can be either a private or a shared entity. For example, you can create a tenant with contexts and bridge domains shared by other tenants. A shared type of tenant is typically named common, default, or infra.      ├ mon:EPGPol Creates a container for monitoring policies associated with the tenant. This allows you to apply tenant-specific policies related to Stats Collection, Stats Export, Callhome/SNMP/Syslog, Event Severities, Fault Severities, and Fault Lifecycles.        ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.          ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...            ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ infra:Infra A container for all tenant infra configurations.                ├ mon:InfraPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.                  ├ mon:InfraTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for the fabric infrastructure. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.                    ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                      ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                        ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ infra:Infra A container for all tenant infra configurations.      ├ mon:InfraPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.        ├ mon:InfraTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for the fabric infrastructure. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.          ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.            ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...              ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ infra:Infra A container for all tenant infra configurations.                ├ mon:InfraPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.                  ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                    ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                      ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ infra:Infra A container for all tenant infra configurations.      ├ mon:InfraPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.        ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.          ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...            ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ mon:FabricPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.                  ├ mon:FabricTarget The monitoring target policy model for the fabric semantic scope.                    ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                      ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                        ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ mon:FabricPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.        ├ mon:FabricTarget The monitoring target policy model for the fabric semantic scope.          ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.            ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...              ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ mon:FabricPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.                  ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                    ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                      ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ mon:FabricPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.        ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.          ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...            ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fv:Tenant A policy owner in the virtual fabric. A tenant can be either a private or a shared entity. For example, you can create a tenant with contexts and bridge domains shared by other tenants. A shared type of tenant is typically named common, default, or infra.                ├ mon:EPGPol Creates a container for monitoring policies associated with the tenant. This allows you to apply tenant-specific policies related to Stats Collection, Stats Export, Callhome/SNMP/Syslog, Event Severities, Fault Severities, and Fault Lifecycles.                  ├ mon:EPGTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for this tenant. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.                    ├ stats:Reportable A statistics policy container, which contains statistic collections and export policies for different types of statistics.                      ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                        ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                          ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fv:Tenant A policy owner in the virtual fabric. A tenant can be either a private or a shared entity. For example, you can create a tenant with contexts and bridge domains shared by other tenants. A shared type of tenant is typically named common, default, or infra.      ├ mon:EPGPol Creates a container for monitoring policies associated with the tenant. This allows you to apply tenant-specific policies related to Stats Collection, Stats Export, Callhome/SNMP/Syslog, Event Severities, Fault Severities, and Fault Lifecycles.        ├ mon:EPGTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for this tenant. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.          ├ stats:Reportable A statistics policy container, which contains statistic collections and export policies for different types of statistics.            ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.              ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ infra:Infra A container for all tenant infra configurations.                ├ mon:InfraPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.                  ├ mon:InfraTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for the fabric infrastructure. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.                    ├ stats:Reportable A statistics policy container, which contains statistic collections and export policies for different types of statistics.                      ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                        ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                          ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ infra:Infra A container for all tenant infra configurations.      ├ mon:InfraPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.        ├ mon:InfraTarget Creating a monitoring target will allow you to associate certain monitoring policies to the target object for the fabric infrastructure. These associated policies can be related to stats collection, stats export, Callhome/SNMP/Syslog, event severities, fault severities, and fault lifecycle policies. The target object will be found in the Monitoring Object drop-down menu in the sub-folders of this monitoring policy, if available.          ├ stats:Reportable A statistics policy container, which contains statistic collections and export policies for different types of statistics.            ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.              ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ fabric:Topology The root for IFC topology.    ├ fabric:Pod A pod.      ├ fabric:Node The root node for the APIC.        ├ ctx:Local The local Context.          ├ ctx:Application The context application.            ├ pol:Uni Represents policy definition/resolution universe.              ├ fabric:Inst A container object for fabric policies.                ├ mon:FabricPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.                  ├ mon:FabricTarget The monitoring target policy model for the fabric semantic scope.                    ├ stats:Reportable A statistics policy container, which contains statistic collections and export policies for different types of statistics.                      ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.                        ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                          ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile. top:Root  This class represents the root element in the object hierarchy. All managed objects in the system are descendants of the Root element.  ├ pol:Uni Represents policy definition/resolution universe.    ├ fabric:Inst A container object for fabric policies.      ├ mon:FabricPol Creates a policy which acts as a container for associated fabric monitoring policies. These can include policies related to Event/Fault severity, the Fault lifecycle, and other such monitoring policies.        ├ mon:FabricTarget The monitoring target policy model for the fabric semantic scope.          ├ stats:Reportable A statistics policy container, which contains statistic collections and export policies for different types of statistics.            ├ stats:ExportP The export policy, which enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency with an option for gzip file compression.              ├ stats:DestP The export policy. The export policy enables you to output statistics collection policy reports in an XML or JSON format. The reports are exported at a specified frequency and to a chosen export destination. Specifying the export destination can require selecting the protocol used when communicating with a remote server and entering a hostname/IP address, a remote path, the username and password the system should use to log in to the remote s...                ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile.

Contained Hierarchy

file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile.  ├ fault:Counts An immutable object that provides the number of critical, major, minor, and warning faults raised on its parent object and its subtree.  ├ fault:Inst Contains detailed information of a fault. This object is attached as a child of the object on which the fault condition occurred. One instance object is created for each fault condition of the parent object. A fault instance object is identified by a fault code.  ├ health:Inst A base class for a health score instance.(Switch only)

Inheritance

reln:Inst This is generated and used only by internal processes.  ├ reln:To This is generated and used only by internal processes.    ├ file:RsARemoteHostToEpp A source relation to the abstract representation of the resolvable endpoint profile.

                file:RsARemoteHostToEpp:creation__file_RsARemoteHostToEpp

                file:RsARemoteHostToEpp:modification__file_RsARemoteHostToEpp

                file:RsARemoteHostToEpp:deletion__file_RsARemoteHostToEpp



                file:RsARemoteHostToEpp:ResolveFail



childAction

Type: mo:ModificationChildAction
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelChildAction

Delete or ignore. For internal use only.

dn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelDn

A tag or metadata is a non-hierarchical keyword or term assigned to the fabric module.

forceResolve

Type: scalar:Bool

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Whether the relation should force pull the target.

lcOwn

Type: mo:Owner
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

A value that indicates how this object was created. For internal use only.

modTs

Type: mo:TStamp
Primitive Type: scalar:Date

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The time when this object was last modified.

monPolDn

Type: reference:BinRef

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The monitoring policy attached to this observable object.

rType

Type: reln:ResolverType
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Represents the type of resolver.

rn

Type: reference:BinRN

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRn

Identifies an object from its siblings within the context of its parent object. The distinguished name contains a sequence of relative names.

state

Type: reln:State
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Represents the state of the relationship.

stateQual

Type: reln:StateQual
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

Represents the state qualifier of the relationship.

status

Type: mo:ModificationStatus
Primitive Type: scalar:Bitmask32

Units: null
Encrypted: false
Access: implicit
Category: TopLevelStatus

The upgrade status. This property is for internal use only.

tCl

Type: reln:ClassId
Primitive Type: scalar:Enum16

Overrides:reln:Inst:tCl

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The class ID of the target object. This property is managed internally and should not be modified by the user.

tDn

Type: reln:Dn
Primitive Type: reference:BinRef

Overrides:reln:Inst:tDn

Units: null
Encrypted: false
Access: admin
Category: TopLevelRegular
Property Validators:

The distinguished name of the target.

tType

Type: reln:TargetType
Primitive Type: scalar:Enum8

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

The type of target.

uid

Type: scalar:Uint16

Units: null
Encrypted: false
Access: implicit
Category: TopLevelRegular

A unique identifier for this object.
